GC Plus Zero Air Generator

The VICI DBS ® GC Zero Air Generator utilizes compressed air that is prefiltered to 5 micron and then purified using a state of the art combined heated catalyst module. The resultant air is free from total hydrocarbons to <0.1 ppm, making it ideal for all FID applications. This gas purity level (measured as methane) guarantees a low signal to noise ratio, ensuring a flat and stable GC baseline.

With no moving parts and silent operation, the generator is extremely reliable and ideal to be installed directly in the laboratory. With flow rates up to 30 L/min one system can support up to 75 FIDs. With short pay back time, minimal maintenance and operator attention they are an ideal addition to any GC laboratory.

Download Product Brochure

FEATURES

▪︎ Produces a continuous supply of zero grade air
▪︎ On-demand supply 24/7
▪︎ Flow rate: 1 to 30 L/min
▪︎ Purity: <0.1 ppm THC
▪︎ Pressure: 10 barg (145 psig)
▪︎ Proprietary platinum catalyst technology
▪︎ No noise, no moving parts and no electricity

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Flow capacity to match your specific instrument demands
▪︎ Ideal for all GC detector applications - stable baseline with increased sensitivity and repeatability
▪︎ Meets and exceeds the requirements for the most demanding GC applications
▪︎ Superior air purification with long life catalyst
▪︎ Peace of mind
▪︎ Improve your laboratory work flow and productivity

Applications

GC APPLICATIONS

▪︎ GC-FID oxidant gas
▪︎ GC-NPD gas
▪︎ GC-FPD gas

ANALYZER APPLICATIONS

▪︎ Total Hydrocarbon Analyzer (THA) detector gas

Technical specifications

Models & Specs	GC Plus 1500	GC Plus 300	GC Plus 6000	GC Plus 15000	GC Plus 30000
Flow mL/min	1500	300	6000	15000	30000
Purity - hydrocarbons	<0.1 ppm
Purity - CO	<0.1 ppm
Inlet pressure barg (psig)	4.5 to 10 (65 to 145)
Inlet air quality	Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig)	1 barg (15 psig) drop from inlet
Max HC in	100 ppm
Max CO in	50 ppm
Technology	Platinum catalyst
LED indicators	Power on/off, system ready, errors
Warm up time (minutes)	45
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption (watts)	200	550	550	550	550

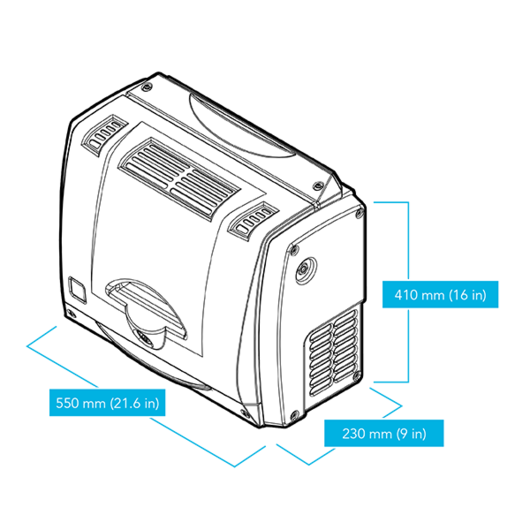

Dimensions mm (inches)	550W x 410H x 230D (21.6W x 16H x 9D)
Weight kg (lbs)	9.5 (21)	11 (24)	11 (24)	12 (26.5)	13 (28.5)
Shipping dimensions mm (in)	650W x 390H x 560D (25.6W x 15.3H x 22D)
Shipping weight kg (lbs)	14 (31)	15 (33)	15 (33)	16 (35)	17 (37.5)
Operating temp °C (°F)	15 to 35 (59 to 95)
Inlet connection	1/4” Compression
Outlet connection	1/8" Compression
Certification	CE, FCC, MET (UL and CSA compliant)
