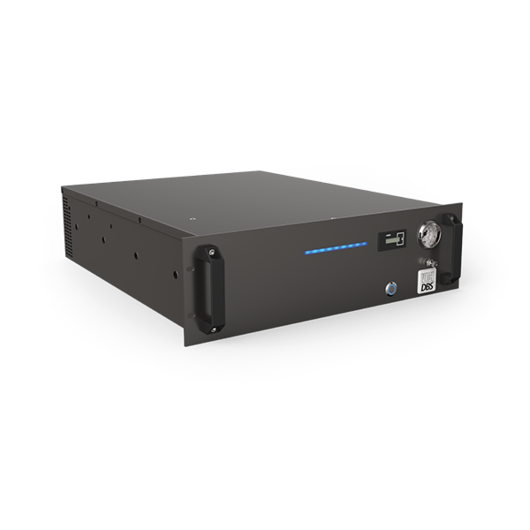

HP Plus Rack Nitrogen Generator

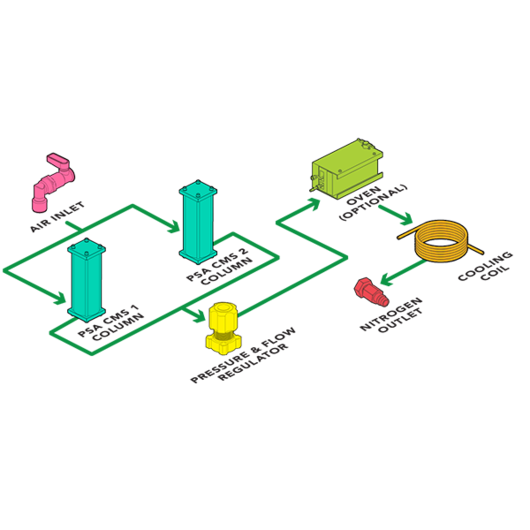

The VICI DBS ® HP Plus Rack produces nitrogen by utilizing a combination of filtration and pressure swing adsorption (PSA) technology. Standard compressed air is filtered by high efficiency coalescing filters to remove all contaminants down to 5 micron. For ultra sensitive applications the 19” rack units also include the additional heated catalyst module to ensure hydrocarbons are removed to <0.1 ppm. The air then passes through two columns filled with a carbon molecular sieve (CMS) which removes O2, CO2 and moisture. These are desorbed to atmosphere during the pressure swing cycle leaving a supply of ultra pure nitrogen.

Download Product Brochure

FEATURES

▪︎ Produces a continuous supply of zero grade nitrogen
▪︎ On-demand supply 24/7
▪︎ Flow rate: up to 500 mL/min
▪︎ Purity:
▪︎ Pressure: up to 5 barg (75 psig)
▪︎ Proprietary carbon molecular sieve technology
▪︎ Easy to install, operate and maintain

Benefits

▪︎ Eliminates dangerous high pressure cylinders helping to keep your employees safer
▪︎ Removes the logistics, inconvenience, downtime and costs of a cylinder system
▪︎ Flow capacity to match your specific instrument demands
▪︎ Ideal for analyzer applications - stable baseline with increased sensitivity and reputability
▪︎ Exceeds the requirements for the most demanding applications
▪︎ Superior nitrogen purification with long life catalyst
▪︎ Peace of mind
▪︎ Improve your laboratory work flow and productivity

Applications

ANALYZER APPLICATIONS

▪︎ Online GC-FID
▪︎ MUDD Logging
▪︎ Carrier gas and make up gas
▪︎ Total Hydrocarbon Analyzer (THA) fuel gas

Technical specifications

Models & Specs	HP Plus Rack 500
Flow mL/min	500
Purity	+99.999%
Hydrocarbon purity (measured as methane)	<0.1 ppm
Dewpoint	-50 °C
Outlet pressure barg (psig)	up tp 5 (75)
Inlet pressure barg (psig)	7 to 10 (100 to 160)
Actual inlet air requirement litres - at 8 barg (116 psig)	11
Recommended compressor air inlet - at 8 barg (116 psig)	22
Pressure drop barg (psig)	1.5 (22)
Inlet air quality	Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Technology	Carbon molecular sieve
Warm up time (minutes)	60
LED indicators	Power on/off, system ready,errors
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption (watts)	270
Noise level	minimal

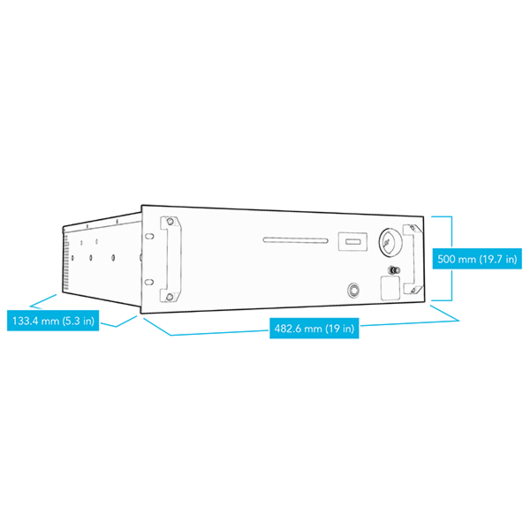

Dimensions mm (in)	19”W x 3UH x 500D (19”W x 3UH x 19.6D)
Weight kg (lbs)	10 (22)
Shipping dimensions mm (in)	720W x 565H x 375D (28.3W x 22.2H x 14.7D)
Shipping weight kg (lbs)	14 (31)
Operating temp °C (°F)	15 to 35 (59 to 95)
Inlet connection	1/4” OD Swagelok or 6 mm OD rapid fitting
Outlet connection	1/8” OD Swagelok or 4 mm OD rapid fitting
